Stainless Steel 316 Forged Bow Shackles 1/2" (12mm) Marine Grade

SKU:
USS370F-0120
|
UPC:
759776160639
$9.75
$10.75
(You save $1.00 )
(No reviews yet) Write a Review
Current Stock:
999

STAINLESS STEEL (316) Forged Bow Shackles 1/2" (12mm) Marine Grade

This is for one (1) quality marine grade stainless steel (AISI 316) bow shackle. Each shackle is stamped 316 and laser etched 1/2".  The shackles are marked in the US specification style of 1/2" (for the shackle size). The Metric equivalent is generally considered to be 12mm. This is a forged shackle, which for heavy duty applications is better than a cast shackle. Not to be used for overhead lifting.

AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

Item will ship via USPS.

See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.

More information on our shackle range is as follows:

US Stainless Bow Shackles Forged 316 Stainless

Size

D (mm)

A (mm)

B (mm)

C (mm)

WLL (kg)

WLL (lbs)

BL (kg)

BL (lbs)

3/16"

5

23

10.8

17

300

660

1200

2640

1/4"

6

31

13

21

425

935

1700

3740

5/16"

8

36.5

17.5

28

625

1375

2500

5500

3/8"

10

44

21.5

35.5

1075

2365

4300

9460

1/2"

12

52.5

27

41

1550

3410

6200

13640

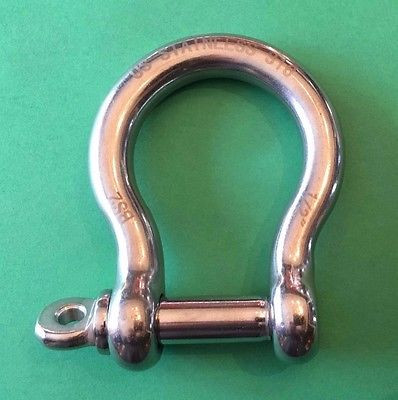

 See photo for dimensions legend.

WLL = Working Load Limit

BL = Breaking Load

Not to be used for overhead lifting.
