Stainless Steel 316 Swage Stud M8 Threaded Terminal Marine Grade for 5/32" Wire

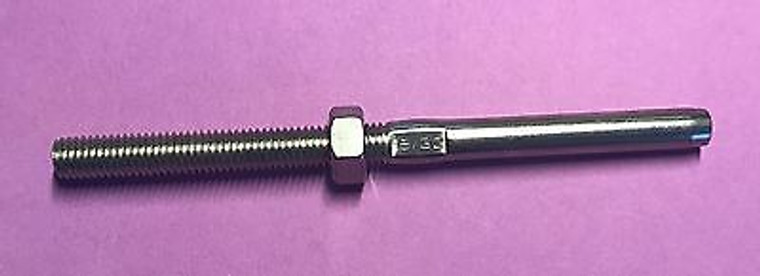

STAINLESS STEEL (316) Swage Stud M8 Threaded Terminal Marine Grade for 5/32" wire rope
This is for one (1) quality marine grade stainless steel (AISI 316) swage stud threaded terminal. The threaded end is M8 and the swage end is suitable for 5/32" wire or cable. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our wire rope range is as follows:
| Swage Stud Threaded Terminal 316 Stainless (Type 7801) | ||||||
| Wire Diam (F) | Wire Met | Thread (M) | E (mm) | L (mm) | L1 (mm) | |
| 1/8" | 3 | M6 | 37 | 97 | 48 | |
| 5/32" | 4 | M6 | 48 | 108 | 48 | |
| 5/32" | 4 | M8 | 48 | 116 | 56 | |
| 3/16" | 5 | M10 | 53 | 132 | 67 | |
| 1/4" | 6 | M10 | 65 | 148 | 67 | |
| 1/4" | 6 | M12 | 65 | 162 | 81 | |
| 5/16" | 8 | M12 | 83 | 182 | 81 | |
Not to be used for overhead lifting.
