Stainless Steel 316 Wire Rope Thimble Casting with Closed End 5/16" (8mm) Marine
Write a Review
Stainless Steel 316 Wire Rope Thimble Casting with Closed End 5/16" (8mm) Marine
Stainless Steel 316 Wire Rope Thimble Casting with Closed End 5/16" (8mm) Marine Grade for 5/16" wire rope M8

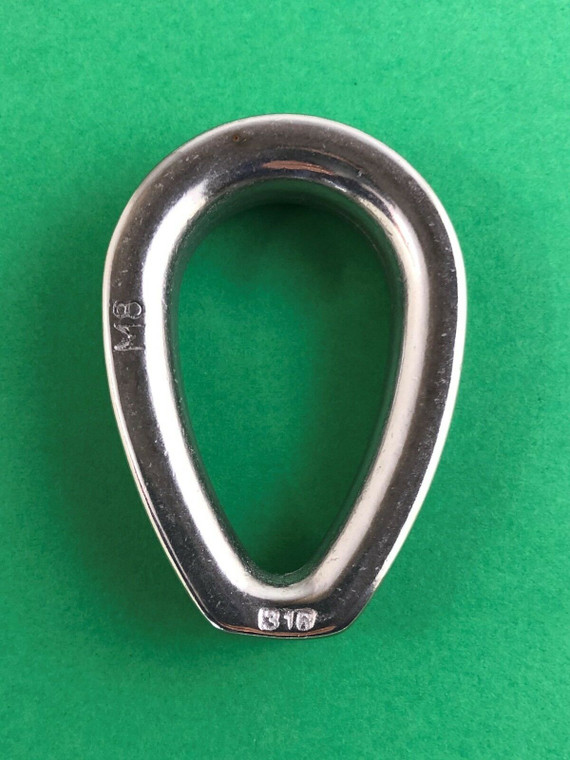

This is for one (1) quality marine grade stainless steel (AISI 316) wire rope thimble casting with closed end made specifically for casting applications. This thimble is made of casting material and has a closed end. This thimble has strong, robust and thick side walls. Each thimble is stamped 316 and marked in the imperial style of 5/16", as well as M8 for metric. The metric equivalent is generally considered to be 8mm. For wire rope or rope size of 5/16".
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
| US Stainless Thimble Casting with Closed End 316 Stainless Type 2344 | |||||
| Wire Diameter | Size mm | A (mm) | B (mm) | C (mm) | D (mm) |
| 1/4" | 6mm | 42.5 | 9 | 17 | 8 |
| 5/16" | 8mm | 58 | 12.8 | 24.5 | 8.8 |
| 3/8" | 10mm | 67.5 | 13.6 | 28.3 | 10.3 |
| 1/2" | 12mm | 85 | 16.3 | 36.5 | 12 |
