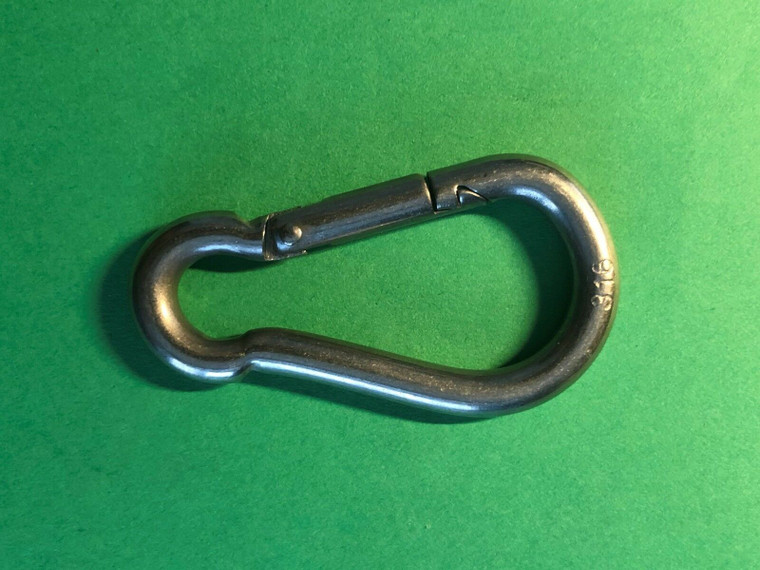

Stainless Steel 316 Spring Hook Carabiner 3/16" (5mm) No Eye Marine Grade
Write a Review
Stainless Steel 316 Spring Hook Carabiner 3/16" (5mm) No Eye Marine Grade
STAINLESS STEEL 316 Spring Hook Carabiner 3/16" (5mm) No Eye Marine Grade
This is for one (1) quality marine grade stainless steel (AISI 316) spring hook 3/16". Each spring hook is stamped 316. The spring hooks are in the US specification style of 3/16". The Metric equivalent is generally considered to be 5mm. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our spring hook range is as follows:
| Spring Hooks (No Eye) 316 Stainless | |||||||||
| Size | D (mm) | A (mm) | B (mm) | C (mm) | D (mm) | WLL (kg) | WLL (lbs) | BL (kg) | BL (lbs) |
| 3/16" | 5 | 50 | 26.5 | 7 | 7.8 | 55 | 121 | 220 | 484 |
| 1/4" | 6 | 60 | 30 | 7.5 | 7.8 | 68 | 150 | 272 | 598 |
| 5/16" | 8 | 80 | 40.5 | 10 | 10.8 | 127 | 279 | 508 | 1118 |
| 3/8" | 10 | 100 | 50 | 12 | 14 | 182 | 400 | 728 | 1602 |
| 7/16" | 11 | 120 | 58 | 16 | 18 | 204 | 449 | 816 | 1795 |
| 1/2" | 12 | 140 | 64 | 21 | 20 | 227 | 499 | 908 | 1998 |
| Legend | |||||||||
| BL = Breaking Load | |||||||||
| WLL = Working Load Limit | |||||||||
See photos for dimensions legend.
Not to be used for overhead lifting.
