Stainless Steel 316 Long D Shackle 1/2" (12mm) Marine Grade Dee
Write a Review
Stainless Steel 316 Long D Shackle 1/2" (12mm) Marine Grade Dee

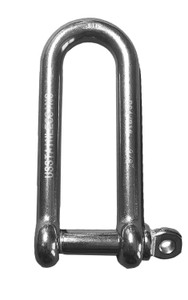

STAINLESS STEEL (316) Long D Shackle 1/2" (12mm) Marine Grade
This is for one (1) quality marine grade stainless steel (AISI 316) Long D Shackle. Each shackle is stamped 316 and laser etched 1/2" with the makers hallmark. The shackles are marked in the US specification style of 1/2" (for the shackle size). The Metric equivalent is generally considered to be 12mm. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our shackle range is as follows:
| Long D Shackles 316 Stainless | |||||||
| Size | D (mm) | A (mm) | B (mm) | SWL (kg) | SWL (lbs) | BL (kg) | BL (lbs) |
| 3/16" | 5 | 37 | 9.5 | 312 | 686 | 1250 | 2750 |
| 1/4" | 6 | 45.3 | 13.5 | 450 | 990 | 1800 | 3960 |
| 5/16" | 8 | 60 | 16.5 | 688 | 1513 | 2750 | 6050 |
| 3/8" | 10 | 75 | 20.8 | 822 | 1807 | 3250 | 7150 |
| 1/2" | 12 | 90 | 25 | 1600 | 3520 | 6400 | 14080 |
See photo for dimensions legend.
