Stainless Steel 316 5/16" Lifting Eye Nut Marine Grade 5/16" UNC
Write a Review

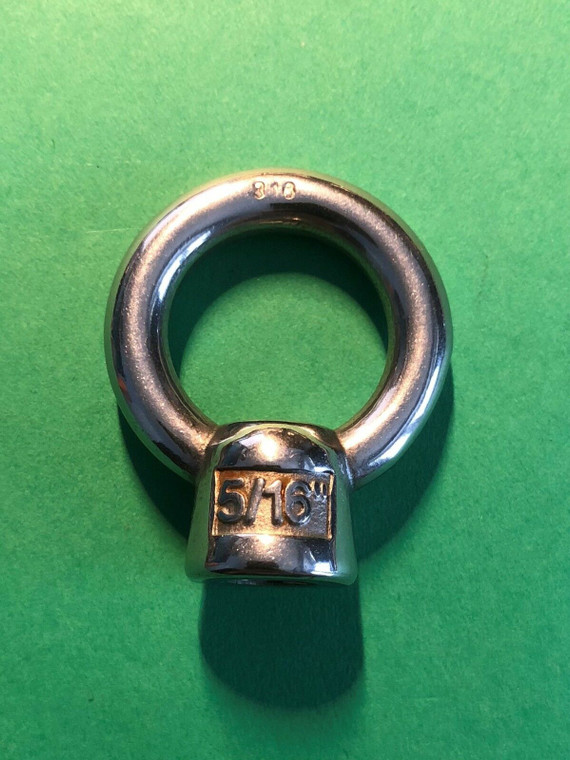

Stainless Steel 316 5/16" Lifting Eye Nut Marine Grade 5/16" UNC
STAINLESS STEEL 316 5/16" UNC Lifting Eye Nut Marine Grade
This is for one (1) quality marine grade stainless steel (AISI 316) eye nut 5/16" UNC. The eye nuts are made in the US Style of 5/16". The metric equivalent is generally considered to be 8mm, but these are an imperial thread, and require an imperial UNC bolt. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our range is as follows:
| Lifting Eye Nut 316 Stainless (Shape Type 3061) | ||||||
| Size (mm) | Dia (mm) | A (mm) | B (mm) | Thread | | BL (lbs) |
| 1/4" | 5 | 30 | 16.3 | 1/4" UNC | 520 | |
| M6 | 4.7 | 31.3 | 16.3 | M6 | 520 | |
| 5/16" | 5.8 | 39.5 | 20 | 5/16" UNC | 700 | |
| M8 | 5 | 37.7 | 21 | M8 | 700 | |
| 3/8" | 7.6 | 48.6 | 25 | 3/8" UNC | 1320 | |
| M10 | 7 | 48.9 | 25.8 | M10 | 1320 | |
| 1/2" | 8.8 | 61 | 30 | 1/2" UNC | 1920 | |
| M12 | 9.6 | 59.7 | 30.3 | M12 | 1920 | |
| 5/8" | 12 | 72 | 35 | 5/8" UNC | 3960 | |
See photos for dimensions legend.
