Stainless Steel 316 M6 Eye Bolt Welded 6mm x 40mm (1/4" x 1 5/8") Marine Grade
Write a Review
Stainless Steel 316 M6 Eye Bolt Welded 6mm x 40mm (1/4" x 1 5/8") Marine Grade

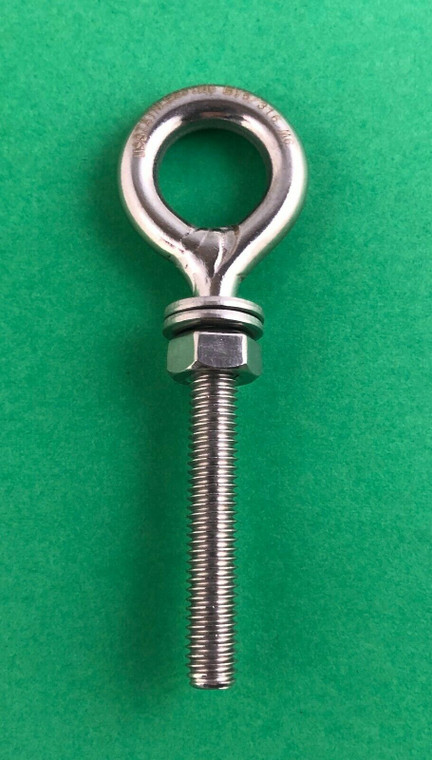

STAINLESS STEEL 316 M6 Eye Bolt Welded 1/4" x 1 5/8" (6mm x 40mm) Marine Grade with one nut and two washers
This is for one (1) quality marine grade stainless steel (AISI 316) eye bolt M6. Each eye bolt comes with the nut and two washers. The eye bolts are made in the metric style of M6. The Imperial equivalent is generally considered to be 1/4", but this is a metric bolt and requires a metric nut (supplied). The length measurement is the length of the (usable) threaded section of the eye bolt (1 5/8"). Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our range is as follows:
| US Stainless Eye Bolts Welded 316 Stainless Type 3191 | ||||
| Size (mm) | A (mm) | B (mm) | C (mm) | BL (lbs) |
| 6mm x 40mm | 40 | 13 | M6 | 2200 |
| 6mm x 60mm | 60 | 13 | M6 | 2200 |
| 1/4" UNC x 60mm | 60 | 13 | 1/4" UNC | 2200 |
| 6mm x 80mm | 80 | 13 | M6 | 2200 |
| 6mm x 100mm | 100 | 13 | M6 | 2200 |
| 8mm x 60mm | 30 | 17 | M6 | 3950 |
| 8mm x 80mm | 80 | 17 | M8 | 3950 |
| 8mm x 100mm | 100 | 17 | M8 | 3950 |
| 5/16" UNC x 4" | 100 | 17 | 5/16" UNC | 3960 |
| 10mm x 80mm | 80 | 21 | M10 | 5250 |
| 10mm x 100mm | 100 | 21 | M10 | 5250 |
| 3/8" UNC x 3 1/18" | 80 | 21 | 3/8" UNC | 5250 |
| 12mm x 100mm | 100 | 25 | M12 | 7700 |
| 12mm x 120mm | 120 | 25 | M12 | 7700 |
| 1/2" UNC x 120mm | 120 | 25 | 1/2" UNC | 7700 |
| 12mm x 150mm | 150 | 25 | M12 | 7700 |
See photos for dimensions legend.
