Stainless Steel 316 Anchor Chain 3/8" or 10mm by 15' Long Shackles
Write a Review
Stainless Steel 316 Anchor Chain 3/8" or 10mm by 15' Long Shackles
STAINLESS STEEL (316) Anchor Chain 10mm (3/8") by 15' in length includes quality forged shackles on each end

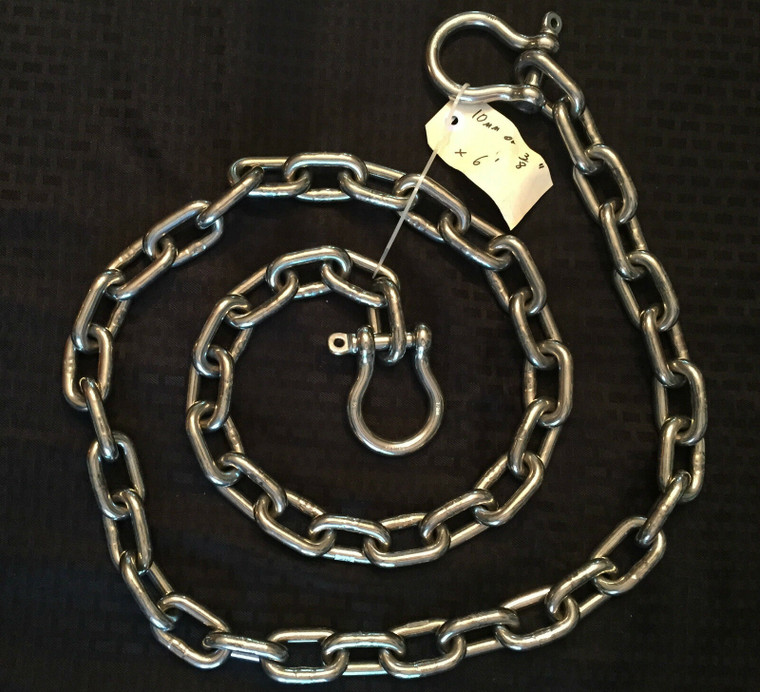

Please note the pictures in this listing are of our 6' chain, but this listing is for a 15' chain.
This is a quality marine grade stainless steel (AISI 316) chain specifically cut for anchor chain. The link size is 10mm or 3/8" equivalent. Included are two oversized marine grade stainless steel (AISI 316) anchor shackles. Each shackle is 1/2". The total length of chain is 15' measured before the shackles are added. The chain links are marked in the European specification style of 10mm (for the chain link size) and 1/2" (for the shackle size). The Imperial equivalent is generally considered to be 3/8" for the chain link size. This is a forged shackle, which for load applications is better than cast.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
| Stainless Chain with Shackles Specifications | ||||||||
| Stainless Steel | Metric | Chain Size | Breaking Load and Shackle Size | |||||
| Medium Link Chain 316 | Size | DIA mm | IL in mm | OW mm | B.L. (lbs) Chain | B.L. (lbs) Shackle | Shackle Size | Wgt (lbs/ft) |
| 5/32" | 4mm | 4.0 | 19.1 | 15.0 | 1760 | 3740.0 | 6mm | 0.22 |
| 3/16" or 13/64" | 5mm | 5.0 | 22.0 | 19.0 | 2760 | 3740.0 | 6mm | 0.34 |
| 3/16" or 7/32" | 5.5mm | 5.5 | 24.6 | 10.7 | 3200 | 3740.0 | 6mm | 0.32 |
| 1/4" | 6mm | 6.0 | 27.0 | 22.6 | 4000 | 5500.0 | 5/16" | 0.48 |
| 1/4" | 7mm | 7.0 | 30.0 | 26.0 | 4200 | 5500.0 | 5/16" | 0.66 |
| 5/16" | 8mm | 8.0 | 31.9 | 30.0 | 7120 | 9480.0 | 3/8" | 0.87 |
| 3/8" | 10mm | 10.0 | 38.0 | 34.0 | 11120 | 13640.0 | 1/2" | 1.40 |
| 1/2" | 12mm | 12.0 | 47.0 | 42.9 | 21840 | 14320.0 | 9/16" | 2.00 |
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.Item will ship via USPS.
