Stainless Steel 316 Delta Anchor 22lbs (10kg) Marine Grade with Bow Shackle
STAINLESS STEEL (316) Delta Anchor 22lbs (10kg) Marine Grade Polished with Bow Shackle

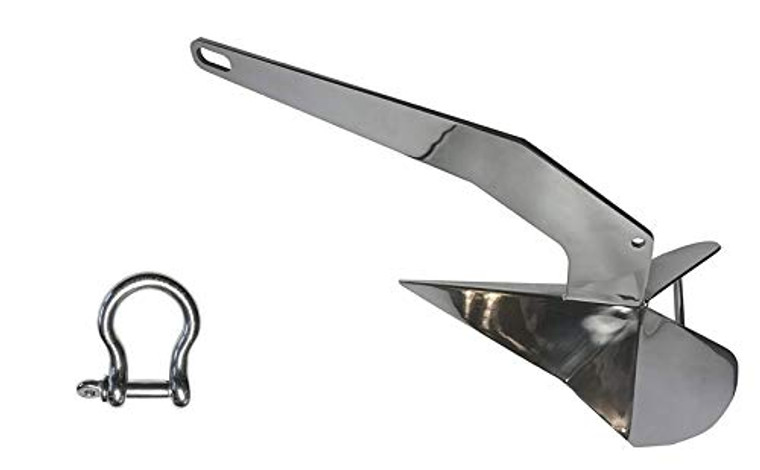

This is a beautiful anchor, highly polished. The current pictures do not do it justice. The current photos are of our 11lb anchor, but other than size and weight, the anchor is the same.
This is for one (1) quality marine grade stainless steel (AISI 316) 22lb (10kg) delta style anchor. Also included is a stainless steel 316 grade 5/16" bow shackle for easy attachment. The anchor is approx 28" (680mm) in length. Not to be used for overhead lifting. This anchor is a suitable size for boats in the range of 28 to 42 feet in moderate conditions. One piece design provides excellent holding power in nearly all bottoms including one, sand, rock and coral. Rougher conditions or different bottom conditions may require a larger size anchor.
This Delta Anchor has a shank and ballasted tip that makes the anchor self-launching. The low center of gravity and self-righting geometry ensure that the Delta anchor will set immediately. Consistent and reliable in performance, the Delta anchor has Lloyd's Register Type Approval as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organizations.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS or Fedex depending on location.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our range is as follows:
Delta Anchor Stainless 316 with Lead Ballasted Tip | ||||||
Size | Wgt (kg) | A (mm) | B (mm) | C (mm) | Boat Length (ft) | |
11lb | 5 | 580 | 260 | 220 | 15-28 | |
13lb | 6 | 580 | 260 | 220 | 20-35 | |
18lb | 8 | 650 | 290 | 240 | 24-38 | |
22lb | 10 | 680 | 300 | 275 | 28-42 | |
27lb | 12 | 760 | 320 | 280 | 30-45 | |
35lb | 16 | 800 | 360 | 310 | 32-45 | |
44lb | 20 | 860 | 385 | 355 | 42-55 | |
55lb | 25 | 910 | 400 | 360 | 42-55 | |
66lb | 30 | 970 | 420 | 370 | 53-62 | |
88lb | 40 | 1100 | 500 | 490 | 60-72 | |
Not to be used for overhead lifting.
