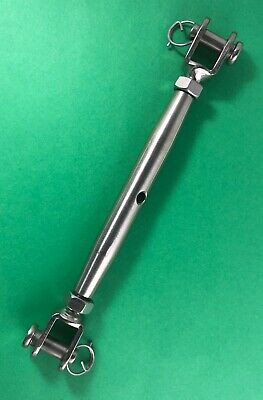

STAINLESS STEEL (316) M10 (3/8") (10mm) Turnbuckle Rigging Screw Jaw and Jaw Marine Grade Type K
This is for one (1) quality marine grade stainless steel (AISI 316) turnbuckle (or bottlescrew) jaw and jaw. Each turnbuckle is laser etched with the size of M10 and the grade 316. This is a metric turnbuckle with M10 threads, the imperial equivalent is 3/8". A locking nut is supplied on each end. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our turnbuckle range is as follows:
| US Stainless Turnbuckle Rigging Screw Jaw and Jaw 316 Stainless Type 312 | |||||
| Size (mm) | L (mm) | L1 (mm) | M (thread) | | BL (lbs) |
| 5mm | 120 | 80 | M5 | | 1100 |
| 6mm | 142 | 90 | M6 | 3050 | |
| 8mm | 160 | 105 | M8 | 4850 | |
| 10mm | 200 | 125 | M10 | | 7600 |
| 12mm | 245 | 150 | M12 | | 11000 |
See photo for dimensions legend.
