Stainless Steel 316 Quick Link 9/16" (14mm) Marine Grade Boating or Rigging

SKU:
USS7350-0140
$28.50
(No reviews yet) Write a Review
Current Stock:
64

STAINLESS STEEL 316 Quick Link 9/16" Marine Grade

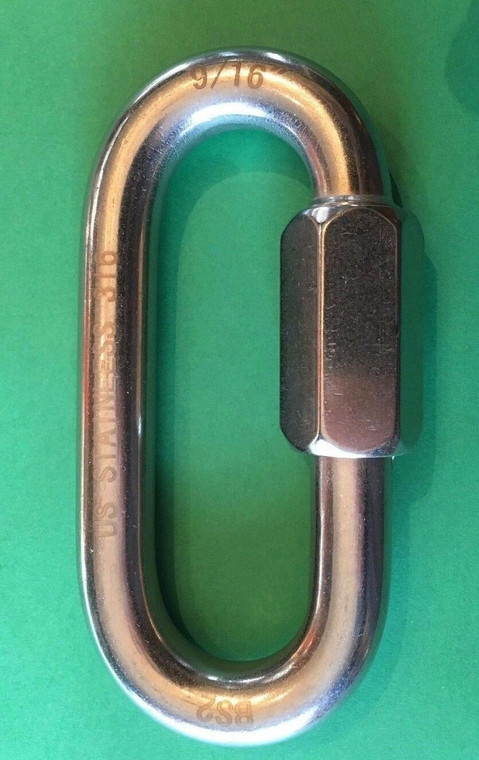

This is for one (1) quality marine grade stainless steel (AISI 316) quick link 9/16". Each quick link is stamped 316 and laser etched 9/16" with the makers mark.  The quick links are marked in the US specification style of 9/16". The metric equivalent is generally considered to be 14mm.  Not to be used for overhead lifting.

AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

Item will ship via USPS.

See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.

More information on our quick link range is as follows:

Quick Link 316 Stainless

Size

D (mm)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

SWL (kg)

SWL (lbs)

BL (kg)

BL (lbs)

5/32"

4

39.5

19.5

6

14

M6*1.00

280

616

1400

3080

1/4"

6

57

26.5

8

20

M9*1.25

650

1430

3250

7150

9/32"

7

66

30

9

22.5

M10*1.25

900

1980

4500

9900

5/16"

8

74

33.5

10

24

M11*1.25

1100

2420

5500

12100

3/8"

10

89

40.5

12

30

M13*1.25

1800

3960

9000

19800

1/2"

12

104.5

47.5

14

34

M15*1.5

2500

5500

12500

27500

9/16"

14

121

54.5

17

38.5

M17*1.5

3500

7700

17500

38500

 See photos for dimensions legend.

BL = Breaking Load

SWL = Safe Working Load

Not to be used for overhead lifting.
