Stainless Steel 316 3/8" Lifting Eye Nut Marine Grade 3/8" UNC

SKU:
USS3061-3/8"
|
UPC:
Does not apply
$3.63
$4.53
(You save $0.90 )
(No reviews yet) Write a Review
Current Stock:
599

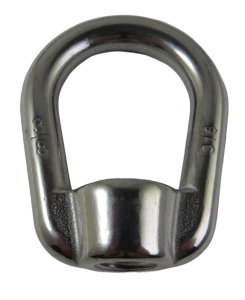

STAINLESS STEEL 316 3/8" UNC Lifting Eye Nut Marine Grade

This is for one (1) quality marine grade stainless steel (AISI 316) eye nut 3/8" UNC. The eye nuts are made in the US Style of 3/8". The metric equivalent is generally considered to be 10mm, but these are an imperial thread, and require an imperial UNC bolt.  Not to be used for overhead lifting.

AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.

Item will ship via USPS.

See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.

More information on our range is as follows:


Lifting Eye Nut 316 Stainless (Shape Type 3061)

Size (mm)

Dia (mm)

A (mm)

B (mm)

Thread



BL (lbs)

1/4"

5

30

16.3

1/4" UNC

520

M6

4.7

31.3

16.3

M6

520

5/16"

5.8

39.5

20

5/16" UNC

700

M8

5

37.7

21

M8

700

3/8"

7.6

48.6

25

3/8" UNC

1320

M10

7

48.9

25.8

M10

1320

1/2"

8.8

61

30

1/2" UNC

1920

M12

9.6

59.7

30.3

M12

1920

5/8"

12

72

35

5/8" UNC

3960

See photos for dimensions legend.

BL = Breaking Load

SWL = Safe Working Load

Not to be used for overhead lifting.
