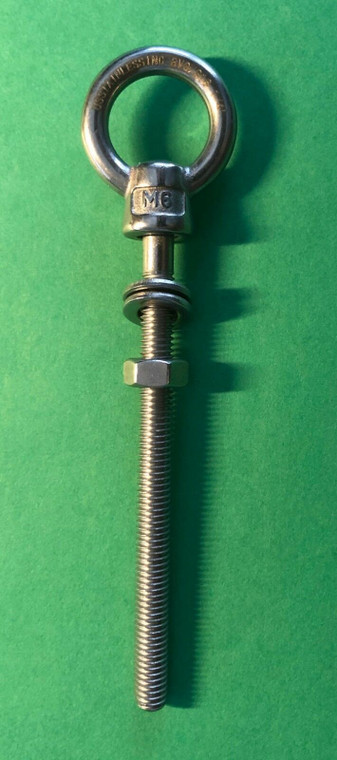

STAINLESS STEEL 316 (Shape Type 307) M6 Lifting Eye Bolt 6mm x 80mm Marine Grade with one nut and two washers
This is for one (1) quality marine grade stainless steel (AISI 316) lifting eye bolt M6. Each eye bolt comes with the nut and two washers. The eye bolts are made in the metric style of M6. This is a metric bolt and requires a metric nut (supplied). The length measurement (80mm) is the length of the shank from the bottom of the head to the bottom of the thread section. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our range is as follows:
| Lifting Eye Bolts 316 Stainless Type 307 | |||||
| Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | BL (lbs) |
| 6mm x 80mm | 16.4 | 80 | M6 | 111 | 2420 |
| 8mm x 100mm | 20.6 | 100 | M8 | 140 | 2850 |
| 10mm x 100mm | 25.6 | 100 | M10 | 148.8 | 5730 |
| 12mm x 120mm | 30.2 | 120 | M12 | 180 | 7450 |
SWL = Safe Working Load
BL = Breaking Load
