US Stainless 316 Stainless Steel Windlass 5/16" ISO G4 Anchor Chain by the foot

SKU:
USSG4-5/16-1
|
UPC:
Does not apply
$9.38
$10.08
(You save $0.70 )
(No reviews yet) Write a Review
Current Stock:
398

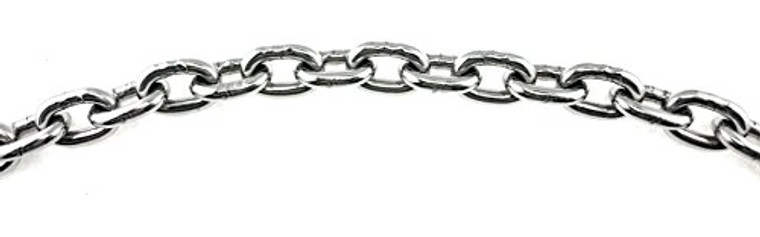

US Stainless 316 Stainless Steel Windlass 5/16" ISO G4 Anchor Chain AISI 316 5/16" By the Foot

This listing is by the foot. Order the number of feet you require in the quantity box. Your chain will ship as that continuous length.

This is a quality, high grade, marine stainless steel (AISI 316) ISO G4 chain suitable for use in a windlass as anchor chain or other marine applications where high corrosion resistance is desired. Superb for anchor chain and general heavy duty work in a marine or chemically harsh environment. This chain will fit many standard windlasses. Please consult your windlass manufacturer model manual for the ideal specification for your windlass. The 3 important figures for smooth running or your windlass is the Diameter (DIA), Inside Length (IL) and Outside Width (OW). More details are in the spec table below. This chain is 8.3*26*28.4 (DIA*IL*OW). The measurements of this chain are listed in mm and as G4 is generally considered an Imperial chain, the Imperial spec of this chain is 5/16"*1.02"*1.12".

G4 Stainless Chain Specifications

US Stainless Stainless Steel 316

Size

Proof Load

Breaking Load

Wgt

G4 Chain 316

DIA mm

IL mm

OW mm

Test (lbs)

BL (lbs)

lbs/ft

1/4"

7.0

21.5

24.4

4000

8000

0.72

5/16"

8.3

26.0

28.4

4800

9600

0.98

3/8"

10.0

31.0

35.0

7100

14200

1.6


Legend:
DIA = Diameter of material (or wire size or D) BL = Breaking Load lbs (or Minimum Breaking Load)
IL (max) = Inside Length (also commonly called Pitch or L)
OW (min) = Outside Width


See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling. The link size is 5/16" or 8 mm metric equivalent.  Every 3 feet links are hallmarked and stamped with 316. Item will ship via USPS. For very long chain lengths, shipping may be via Fedex.
