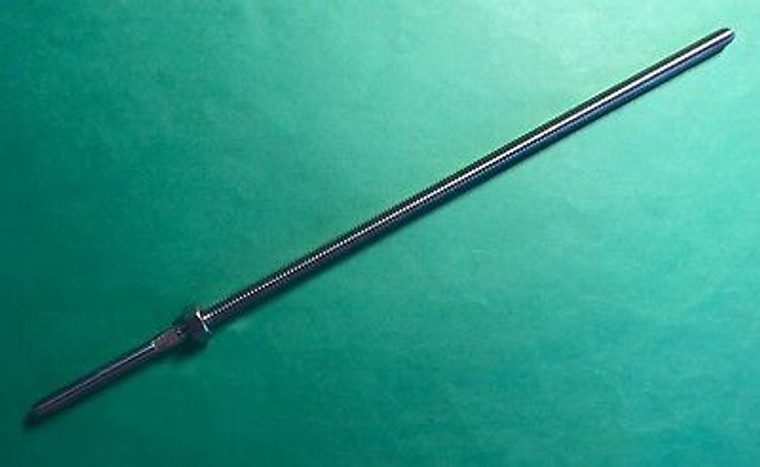

Stainless Steel 316 Hand Swage Stud 1/4" UNC Threaded Terminal Marine for 1/8" Wire
STAINLESS STEEL (316) Hand Swage Stud 1/4" UNC Threaded Terminal Marine Grade for 1/8" wire rope

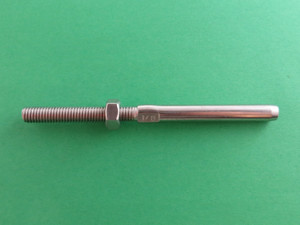

This is for one (1) quality marine grade stainless steel (AISI 316) hand swage stud threaded terminal. This swage is a hand swage and has thinner walls than a roll swage. This swage is not suitable for a roll swaging machine. Suitable for 1/8" wire. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our wire rope range is as follows:
| Swage Stud Threaded Terminal 316 Stainless (Type 7801) | ||||||
| Wire Diam (F) | Wire Met | Thread (M) | E (mm) | L (mm) | L1 (mm) | |
| 1/8" | 3 | M6 | 37 | 97 | 48 | |
| 1/8" (Hand Swage) | 3.2 | M6 | 40 | 255 | 205 | |
| 5/32" | 4 | M6 | 48 | 108 | 48 | |
| 5/32" | 4 | M8 | 48 | 116 | 56 | |
| 3/16" | 5 | M10 | 53 | 132 | 67 | |
| 3/16" (Hand Swage) | 5 | M6 | 50 | 265 | 205 | |
| 1/4" | 6 | M10 | 65 | 148 | 67 | |
| 1/4" | 6 | M12 | 65 | 162 | 81 | |
| 5/16" | 8 | M12 | 83 | 182 | 81 | |
Not to be used for overhead lifting.
