Stainless Steel 316 M10 Lifting Eye Bolt 10mm Marine Grade
Write a Review
Stainless Steel 316 M10 Lifting Eye Bolt 10mm Marine Grade

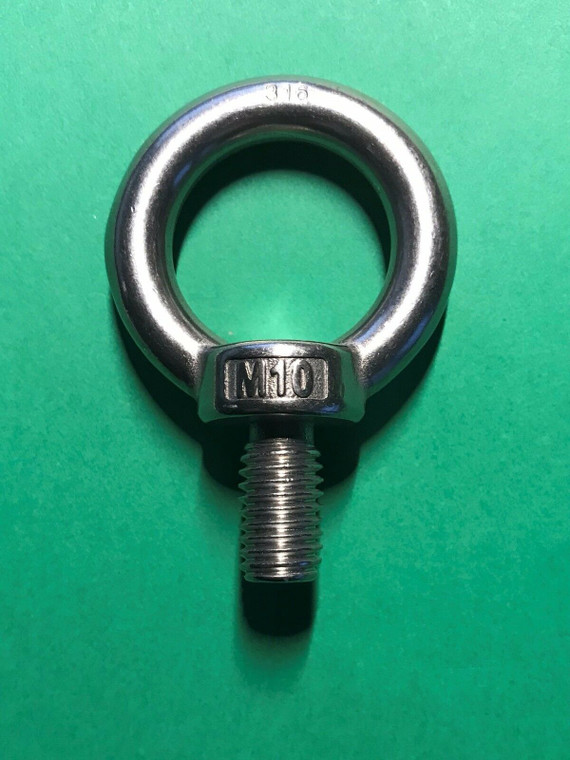

STAINLESS STEEL 316 M10 Lifting Eye Bolt 10mm Marine Grade (Shape Type 306)
This is for one (1) quality marine grade stainless steel (AISI 316) eye bolt M10. Each eye bolt is laser etched with the makers mark. The eye bolts are made in the metric style of M10. The bolts are manufactured in the metric specification style of 10mm or M10 and require a M10 threaded hole or nut. Not to be used for overhead lifting.
AISI 316 stainless is a premium grade of stainless and is considered by many to be best in class. 316 stainless is corrosion resistant and very durable even in the harshest of conditions.
Item will ship via USPS.
See my other listings to save on shipping...after the first item with a shipping and handling charge, additional items (except free of course) are charged a reduced rate for shipping and handling.
More information on our range is as follows:
| Lifting Eye Bolts 316 Stainless (US Type Style 306) | |||||
| Size | A (mm) | B (mm) | C (mm) | Thread | BL (lbs) |
| 1/4" | 38 | 16.3 | 1/4" | UNC | 520 |
| M6 | 37.4 | 16.8 | M6 | M6 | 520 |
| 5/16" | 46.8 | 20 | 5/16" | UNC | 680 |
| M8 | 47 | 20.6 | M8 | M8 | 680 |
| 3/8" | 59 | 25 | 3/8" | UNC | 1320 |
| M10 | 60.7 | 25.6 | M10 | M10 | 1320 |
| 1/2" | 74 | 30 | 1/2" | UNC | 1930 |
